The Collino 200 mm 36-1 or 60-2 Trigger Wheel is designed for high-performance and racing applications requiring precise crankshaft position sensing.
CNC-machined from high-grade steel and laser-cut for absolute accuracy, this 36-1 wheel provides a clean signal for most stand-alone ECUs and ignition controllers, ensuring reliable synchronization at high RPM.

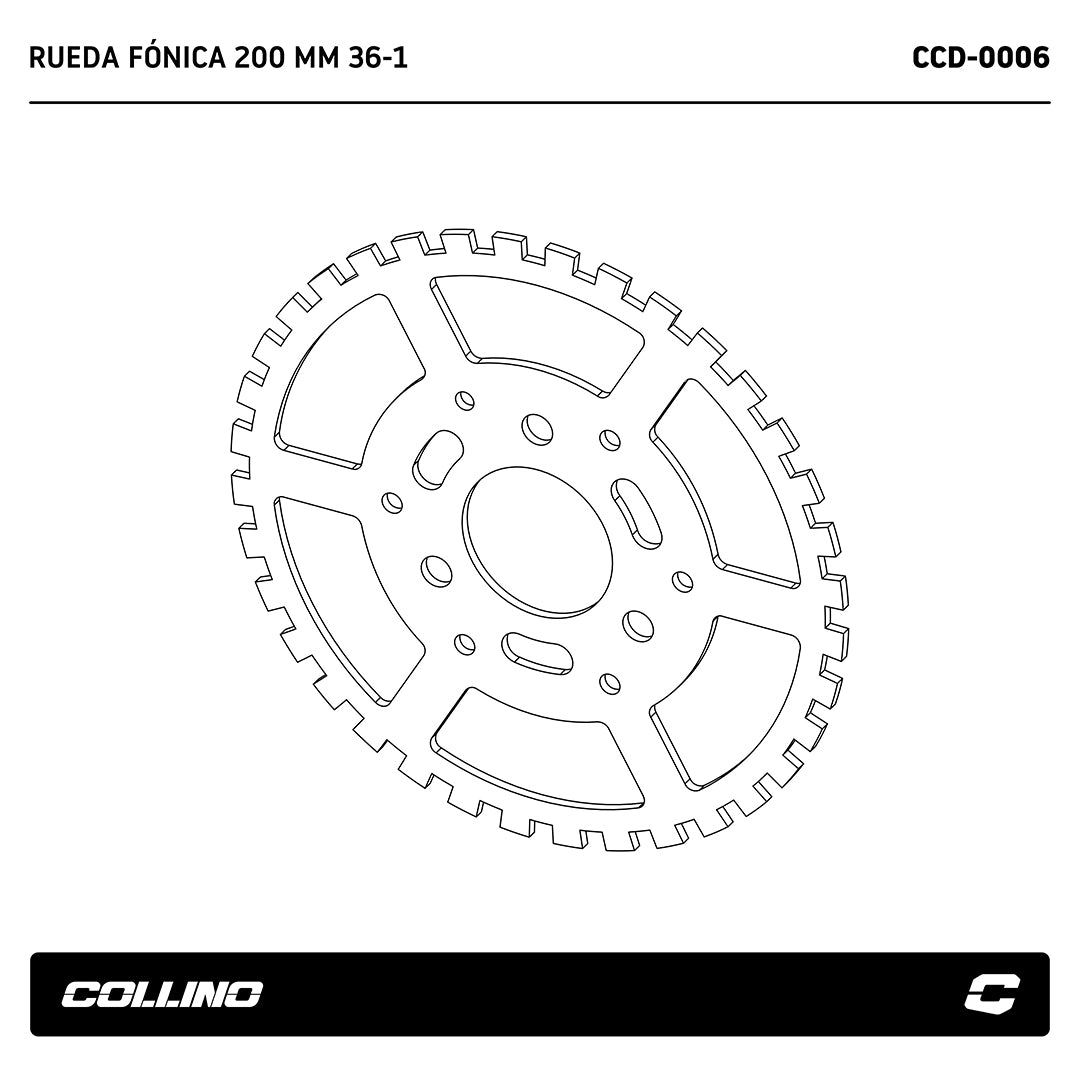

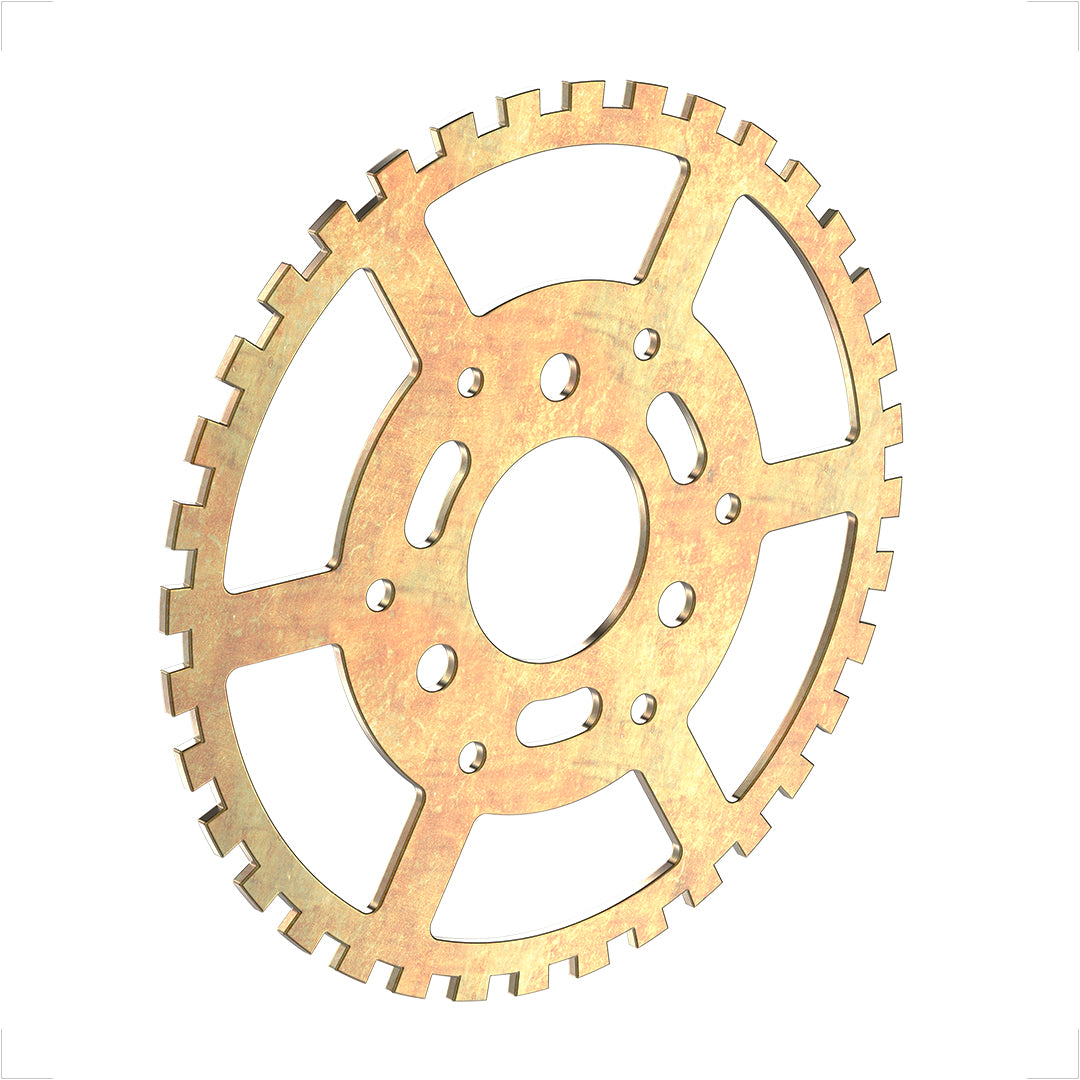

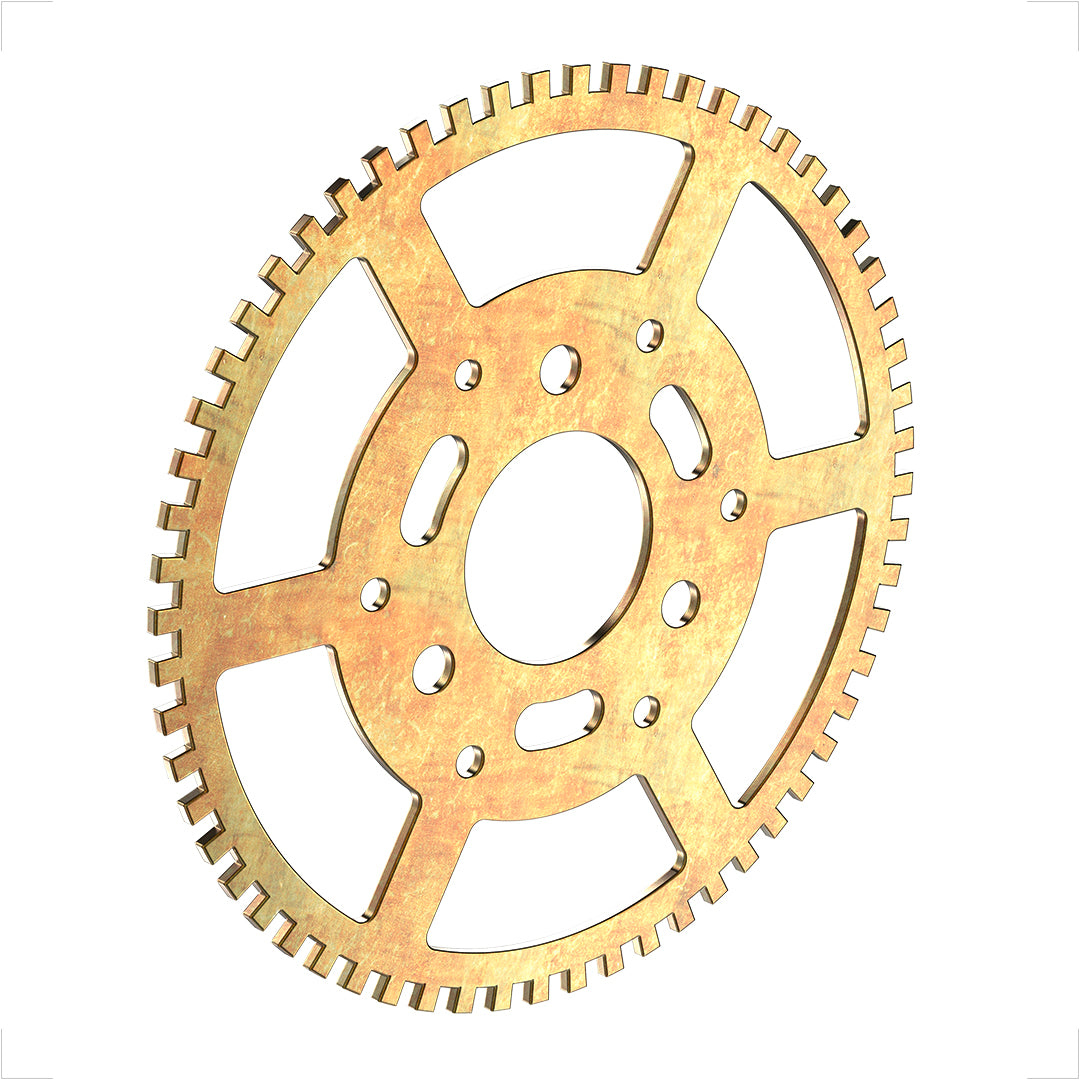

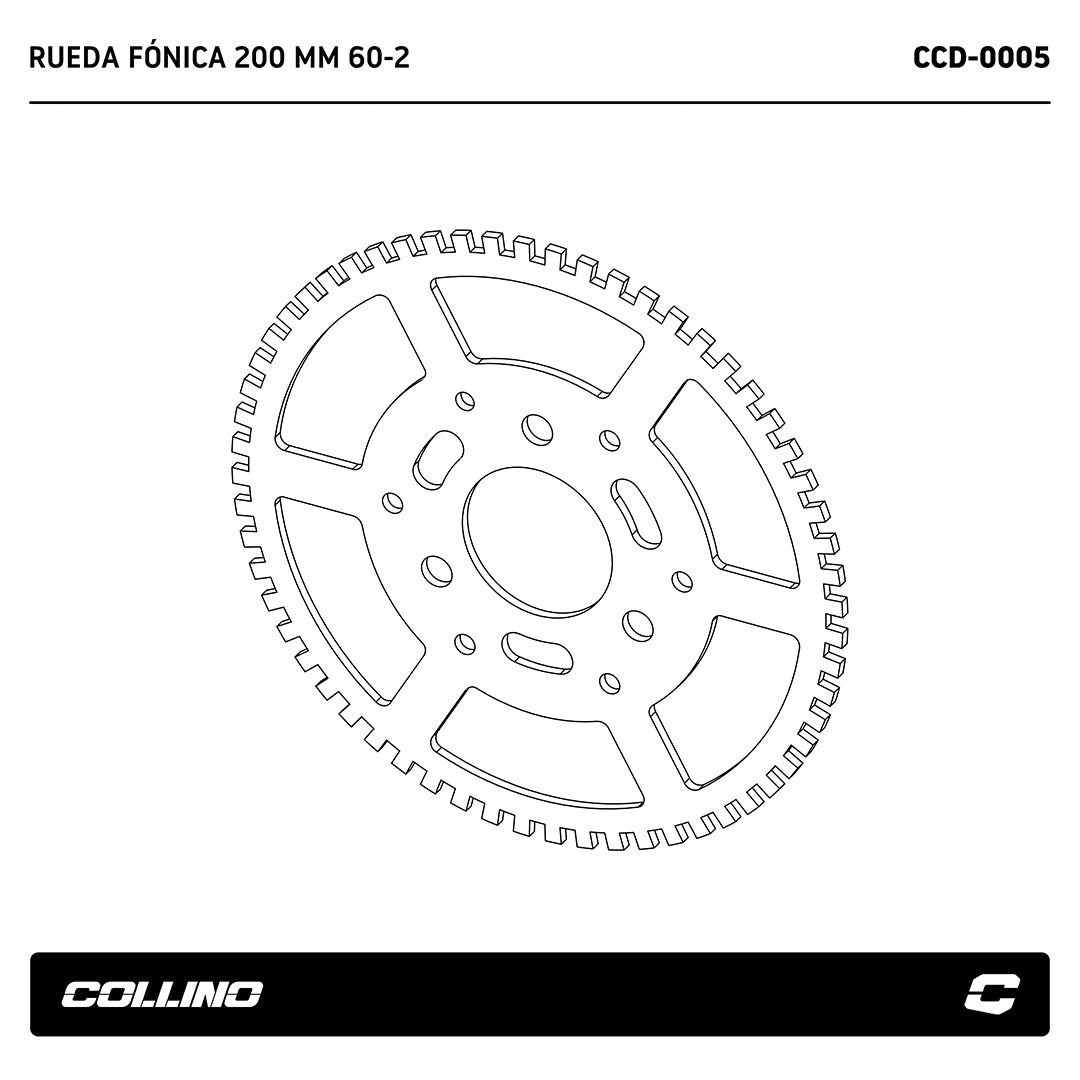

Its 36-1 tooth configuration (36 teeth with one missing) or 60-2 tooth configuration (60 teeth with one missing) allows accurate detection of crank position while minimizing signal noise — ideal for EFI conversions, programmable ignition systems, and custom builds.
Specifications:

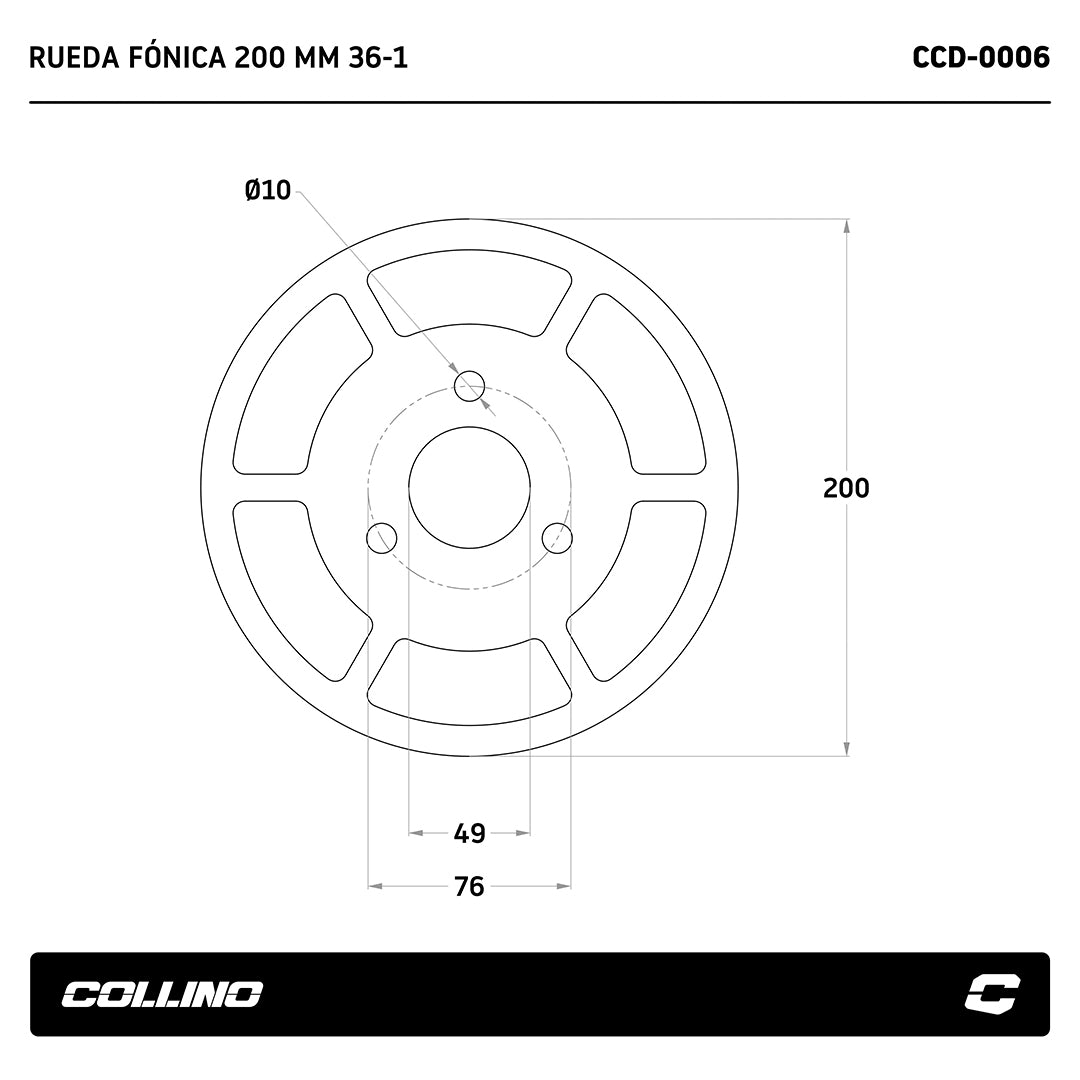

• Outer diameter: 200 mm
• Tooth count: 36-1 pattern or 60-2 pattern
• Material: Laser-cut steel
• Compatible with Hall-effect and VR sensors
• Recommended for EFI, standalone ECUs, and race engines
- Brand: COLLINO
- SKU: CCD-0005
- Diameter: 200 mm
- Finish: ZINC-PLATED
- Color: GOLD
- Warranty: 90 DAYS
- Content: 1
- Box Height: 120 mm
- Package Width: 260 mm
- Package Length: 210 mm
